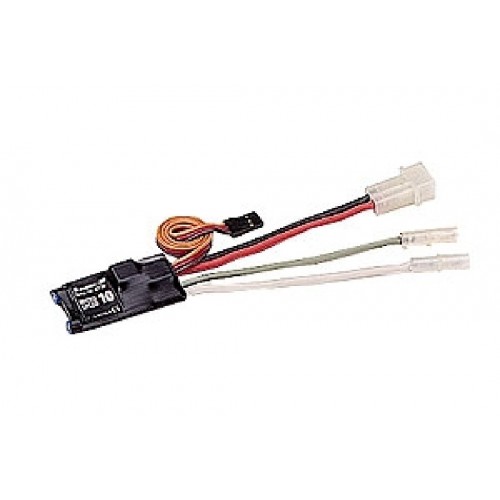

MICRO SPEED 10 2-12V / 10A (10min.)

2736 Obousměrný regulátor otáček pro lodě 10A, krátkodobě 20A (60s), napájení 2,0-12V s BEC stabilizátorem, rozměry 48x21x11mm, 25g.

Product information

Two extremely small reversing micro speed
controllers offering proportional speed control of small electric motors in both directions of rotation.
Separate pots are provided for neutral and maxi-
mum point adjustment.
The extensive range of potential applications for these micro speed controllers includes controlling electric drive motors in small ships' boats, lifeboats and model cars, auxiliary workingsystems in
multi-function models and infinitely variable control of small rotary cranes, dredger arms and
sailwinches in miniature models. The units can be
used to provide proportional control of virtually any small electrical unit or system such as chained lights and signal lamps.
These tiny units provide proportional control
characteristics in both directions of rotation, with
adjustable end-point, and these features open up
a broad field of potential general applications in the R/C multi-function model.

Specification

Operating voltage 2 ... 12 V
Number of cells 2-10
Max. load 10 A (10 min) 20 A (1 min)
Clock frequency 50 Hz
Weight approx. 25 g
Dimensions approx. 48 x 21 x 11 mm
